  SHERP




MAXIMUN POWER
44.3 hp

MAXIMUM SPEED
40 km/h

MAX. SPEED ON THE WATER
6 km/h

CAPACITY
1,000 kg

GRADEABILITY
35 °

CLEARANCE
584 mm

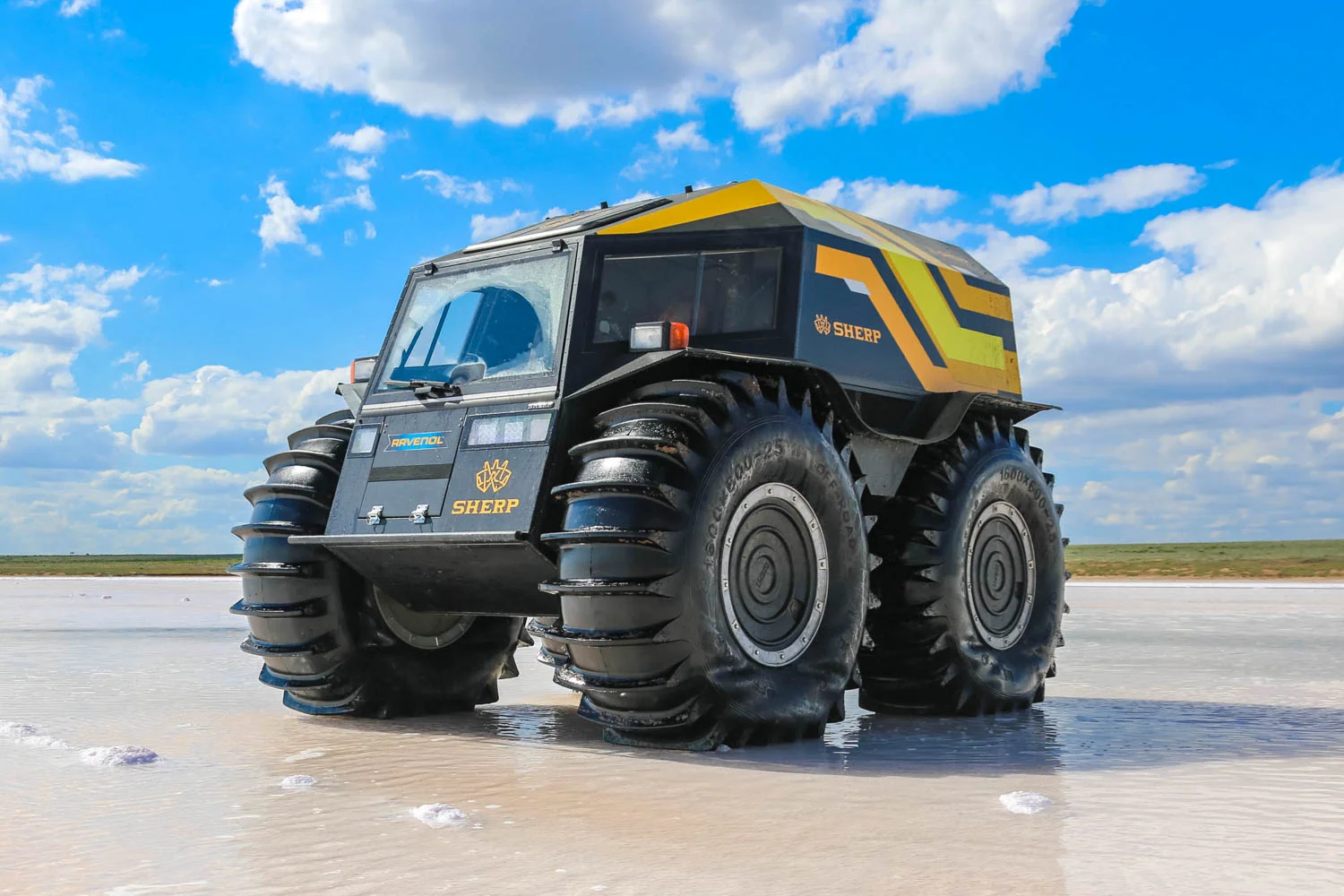

We present you the all-terrain vehicle that will impress everyone with its off-road performance! It is based on developments of domestic designers; and today it demonstrates an absolutely new level of ATV construction. The ATV named Sherp can easily overcome boulders, fallen trees, and other obstacles up to 70 cm high. It floats perfectly, can easily pass marshes and deep snow and is able to move out of the water onto the ice. This trouble-free machine repeatedly gets us to areas where no man has stepped gone before. We have seen the pristine nature of the taiga and tundra, Ugra swamps and mountains of the Kola Peninsula. And everywhere SHERP allowed us to feel strongly and quietly. We more than once travelled to the places where no man has stepped before on this trouble-free vehicle. We have seen the pristine nature of the taiga and tundra, Ugra swamps and mountains of the Kola Peninsula. And everywhere SHERP made us feel strong and safe .

  Specifications






Length, mm
3400

Width, mm
2520

Height, mm
2520

Body
aluminium

Dry weight, kg
1300

Engine
Kubota-V1505-t / E3B

Fuel
diesel

Volume, cu.cm
1497.94

Max. Power, hp
44.2

Transmission
5-speed manual

Suspension
pneumatic circulating

Parking brake system
independent

Clutch
SACHS

Clearance, mm
550…600

Number of cylinders
4

Load capacity, kg
1000

Seats equipped with safety belts
2




Maximum (in top gear), km/h
40

Minimum (in low gear), km/h
1.5

on water, km/h
6

Type of tires
tubeless, ultra low pressure

Tyre size
63×23-25

Passable surfaces
any

Hourly fuel consumption (depending on the off-road conditions), gal/h
0.52-0.79

Fuel tank capacity, gal
17.7

Capacity of extra fuel cans, gal
15.3×4

Height of the obstacle in the form of a vertical step, ft
3.25

Hill climbing capacity
35°

Maintenance frequency, running hours
50

  Key features

• A unique, unparalleled off-road performance;

• it is able to easily get out of water onto the ice ;

• High buoyancy thanks to the sealed body, wheels of 800 l volume each and tyre inflation system;

• A pneumocirculating suspension and in-process easily adjustable pressure in tires for different soils;

• Unique low-pressure tubeless tires;

• Low fuel consumption (diesel) 2-3 litres per hour on any type of soil;

• Low weight;

• Load capacity up to 1000 kg;

• High sustainability – 58-litre cans for fuel embedded in wheel disks, due to which the total fuel capacity is increased by 232 litres;

• Simple and reliable design;

• Small size for easy movement in any limited space and easy transportation;

• Covered cabin;

• A reliable Japanese Kubota engine;

• Ease of maintenance and repair;

• Kingstons to drain water from the body;

• Frame-based design; The structure based on frame;

• Smooth bottom;

• High survivability – SHERP continues to move on three and even two wheels!

• The passenger compartment can be heated by the engine, the vehicle heater, or WEBASTO autonomous heater;

• A special container of fuel system for continuous movement in tilted position. No “Fuel starvation” affects the vehicle!

• Its climbing gradient is up to 35 degrees;

• Skid steering – Sherp is able to turn almost on the same spot;

• Extra beds – possibility to place 4 full-size beds;

• Hold under floor boards, totalling 170 litres to store necessary things, equipment or installation of additional fuel tank;

• Excellent ergonomics and handling;

• The rear view camera for better safety.

• Turning radius - 8,2 Ft

Video

Unique creature

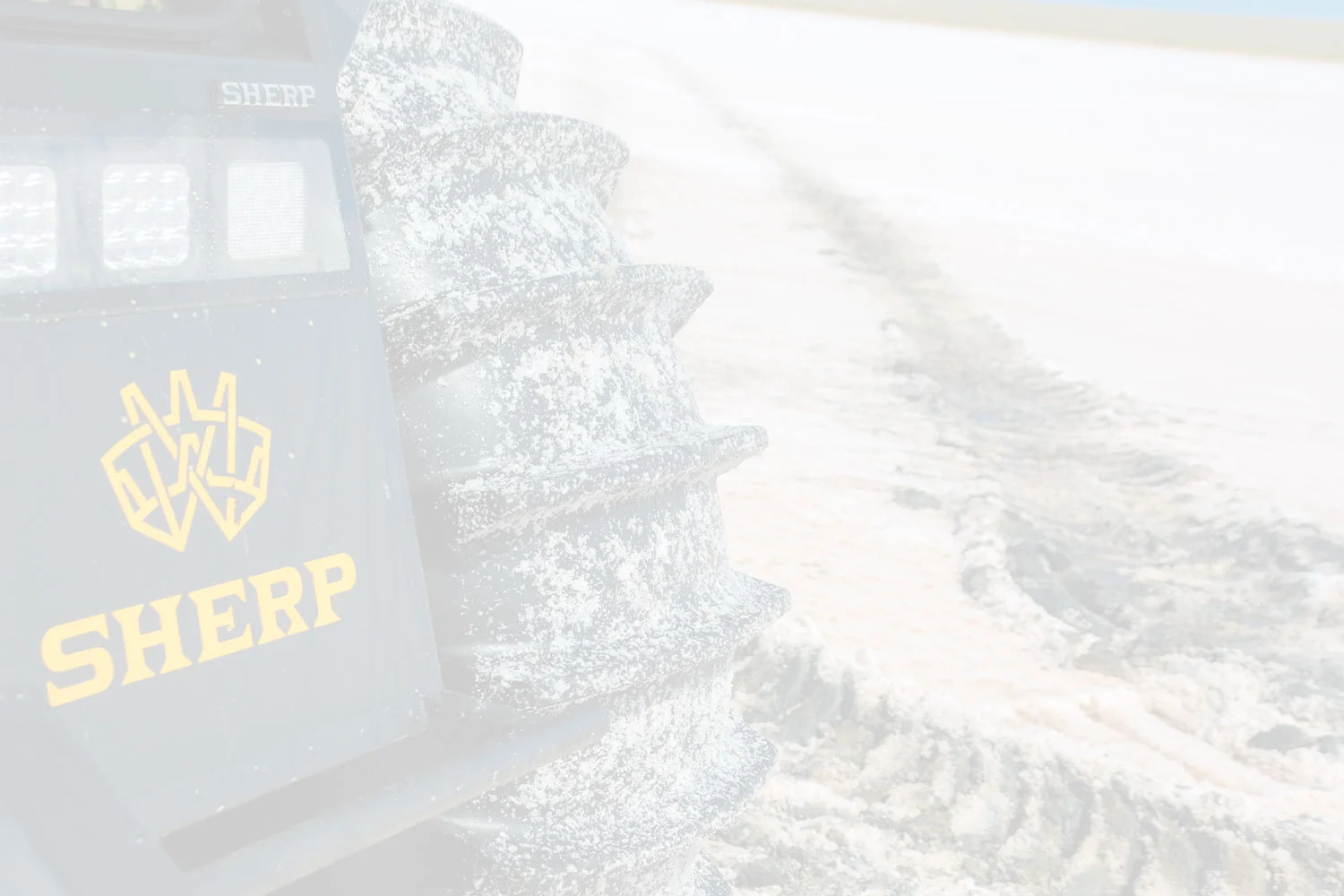

At the core of the ATV are unique tires of a patented one-of-a-kind design.
The documentation about the origin of the vehicles as well as the Quality Certificates are available on the website.

Our company is certified under the prestigious international standard ISO 9001

Thus acknowledging the company’s management commitment to highest standards. It testifies of the company reliability and opens entry into markets in many countries to our products. The processing approach, internal audit and other principles of ISO 9001 are the keystones of the company’s activity. Due to this, the TQM system is being enhanced constantly, thus increasing the level of service and making production more efficient.
